Tri-amped Powered Studio Monitor Speakers

Select Color: Black

MR5

Buy Now
Back to Speakers
Overview
Specification
Support

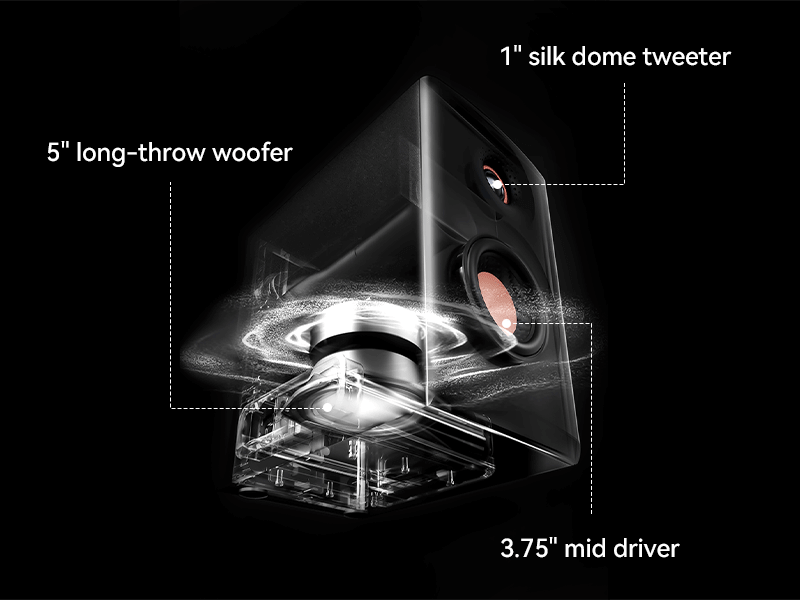

Engineered for Accurate Sound Reproduction

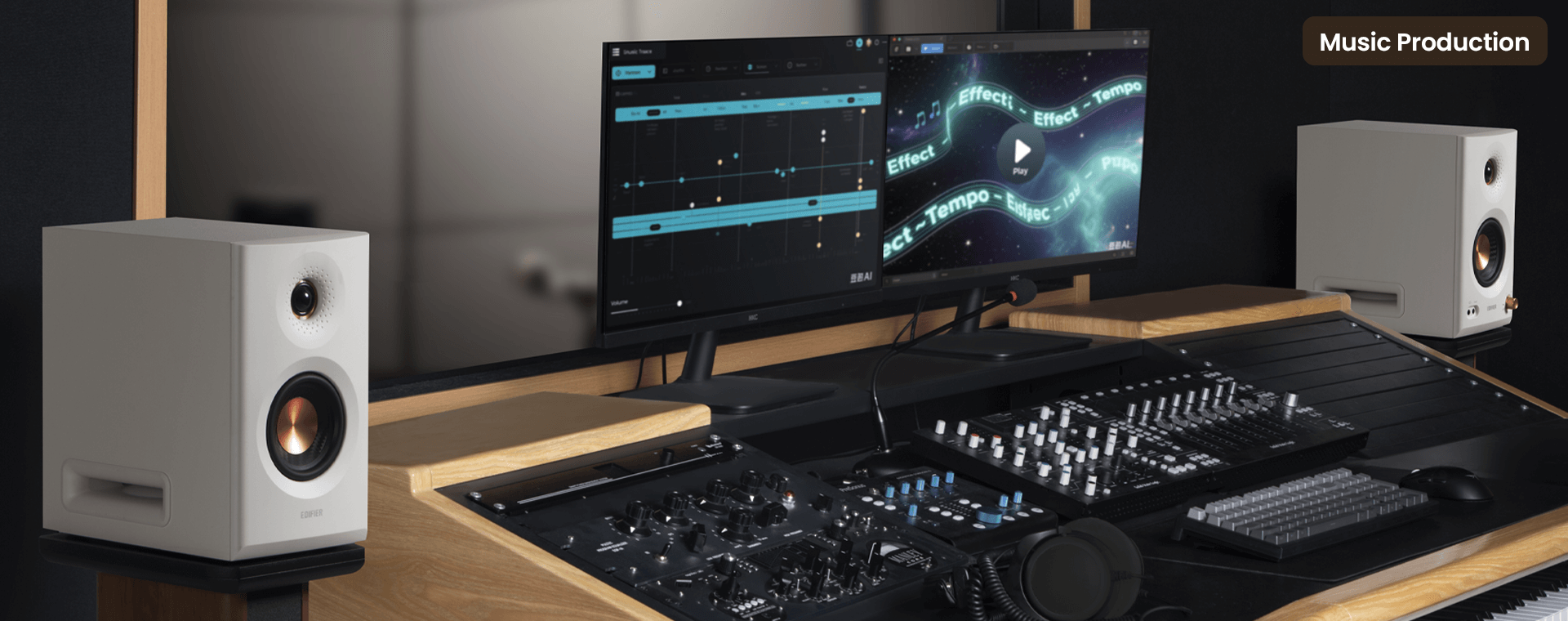

Featuring patented acoustic architecture and a sophisticated tri-amped active crossover, the EDIFIER MR5 delivers a rich and natural sound with seamless transitions across lows, mids, and highs. Designed for precision, it can faithfully reproduce every detail—making them ideal for music production, video editing, and everyday listening.

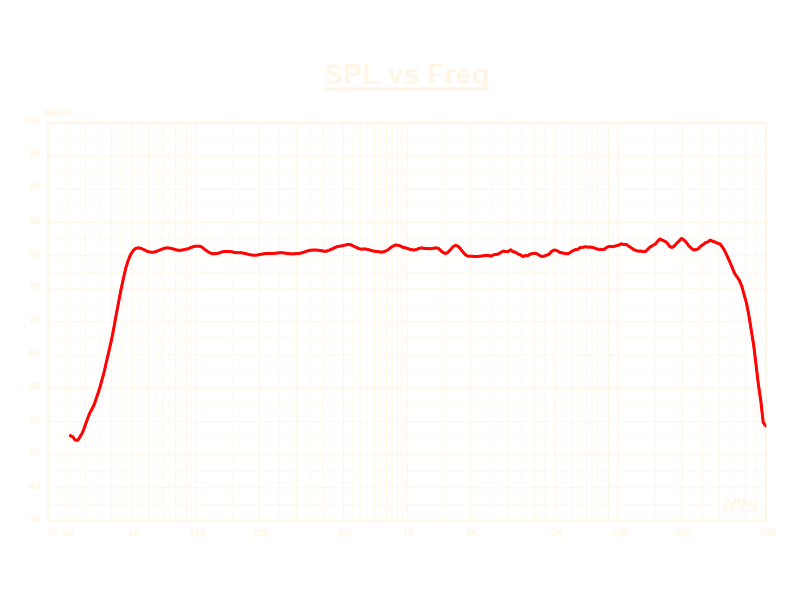

Flat Frequency Response

With a wide and flat frequency response from 46Hz to 40kHz, the EDIFIER MR5 offers neutral and transparent audio, ensuring what you hear is exactly what was recorded.

Wide Sweet Spot

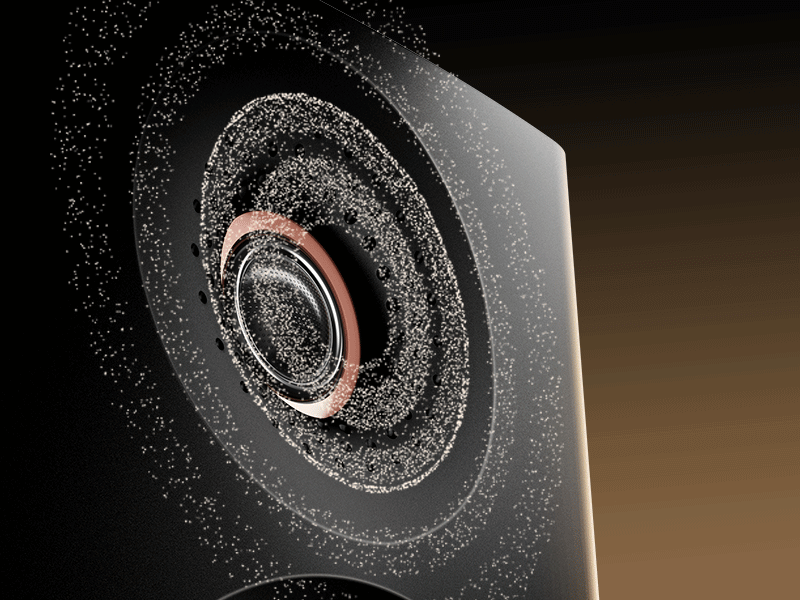

The specially designed dimpled tweeter waveguide enhances high-frequency extension and clarity while expanding the listening area. This ensures consistent, accurate sound across a broader space.

Room-Filling Power

Delivering 110W RMS total output and peak SPL of 101dB (@1 meter), the EDIFIER MR5 is ideal for near-field and mid-field setups and powerful enough to fill medium-sized rooms with ease.

Hi-Res Audio Certified

Equipped with a premium analog front end and Class-D amplifiers, the system supports 24-bit/96kHz resolution, ensuring precise signal conversion and accurate amplification.

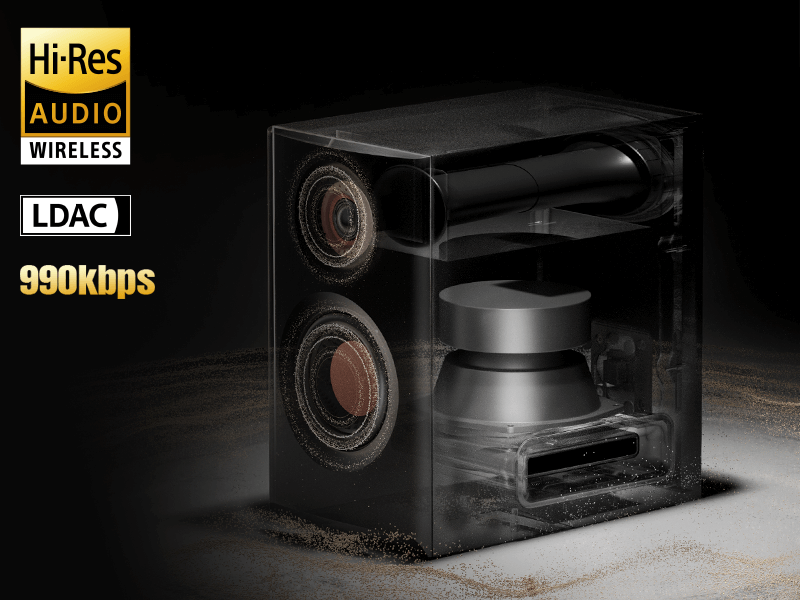

Hi-Res Audio Wireless Certified

Enjoy high-resolution wireless streaming with support for the LDAC codec at up to 990kbps and 24-bit/96kHz—compatible with Android 8.0 and above, thanks to the integrated Bluetooth 6.0 receiver.

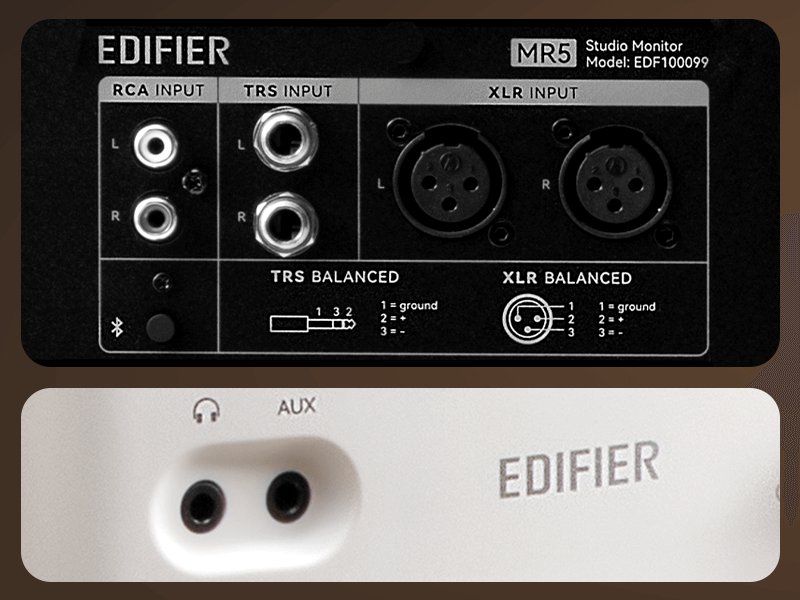

Versatile Connectivity Options

Balanced XLR & TRS Inputs: Professional-grade connections with low noise—perfect for audio interfaces and mixers.

RCA & AUX Inputs: Easily connect multiple devices simultaneously.

Headphone Output: Facilitates easy headphone connection.

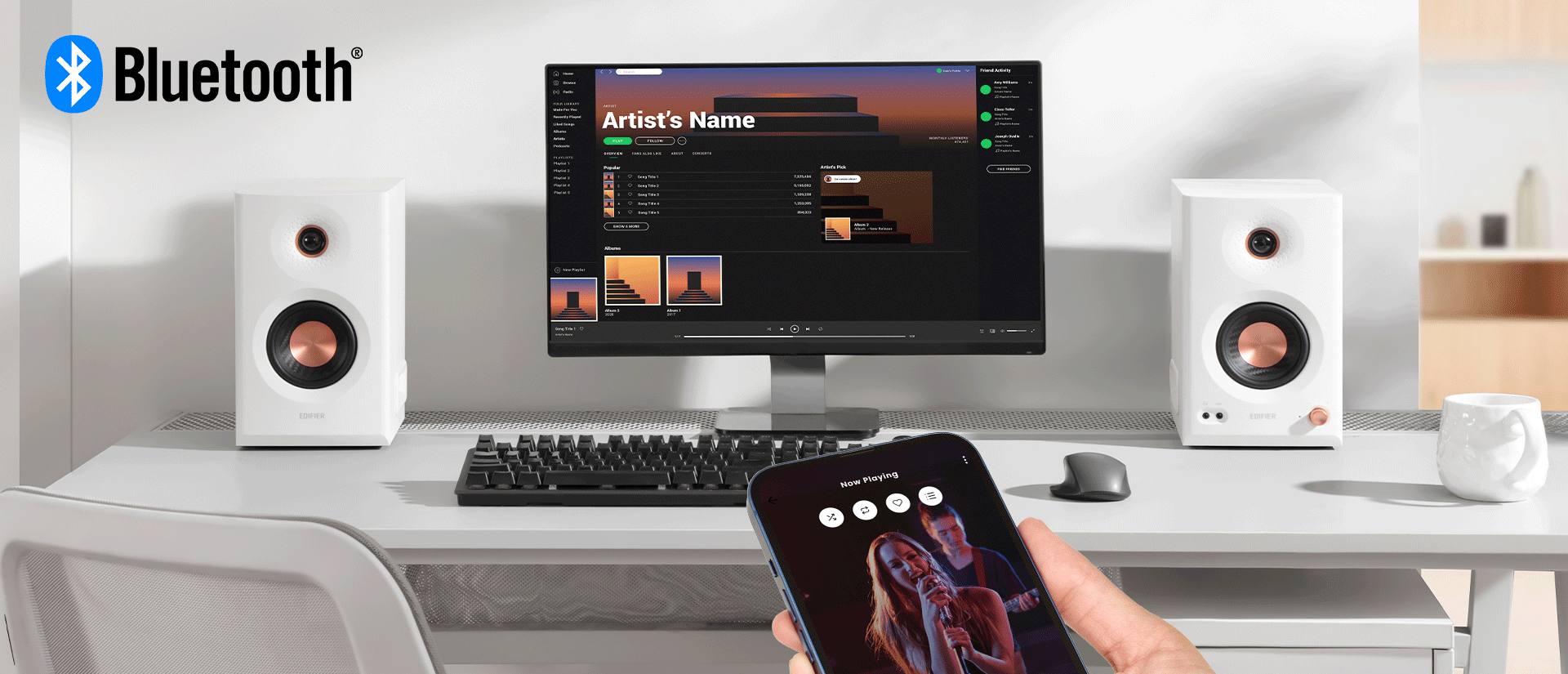

Bluetooth Multipoint Connectivity

Stream seamlessly via Bluetooth® 6.0 with a stable connection and the ability to connect two devices at once—making it effortless to switch between sources.

Room Acoustic Compensation

Rear knobs and the EDIFIER ConneX app provide multiple settings for acoustic room compensation, allowing you to adapt to different room modes and achieve the optimal listening experience.

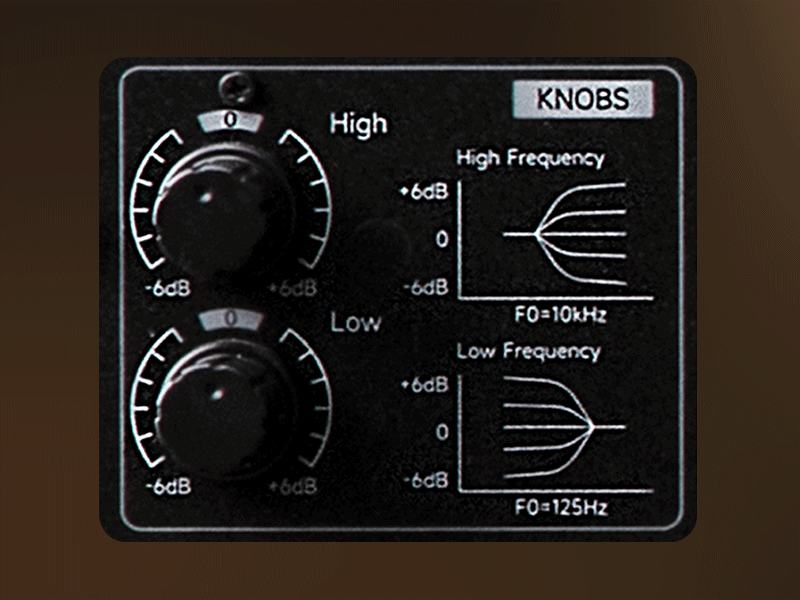

"High" knob:
Cuts or boosts frequencies above 10kHz by ±6dB

"Low" knob:
Cuts or boosts frequencies around 125Hz by ±6dB

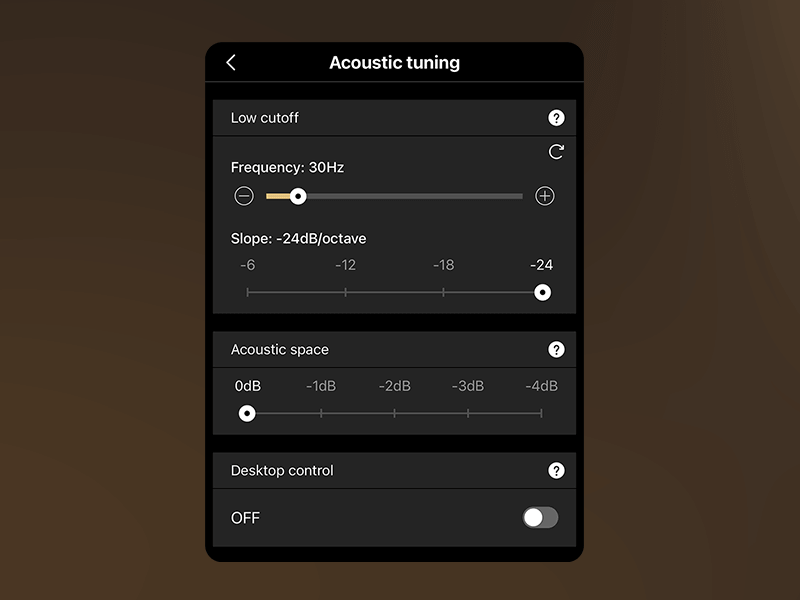

Low Cut-Off:
Attenuates specific low frequency bandwidth to fit the volume of the listening room.

Acoustic Space:
Compensates for mid and bass boosts to suit speaker placement.

Desktop Control:
Compensates for desktop reflection of sound waves.

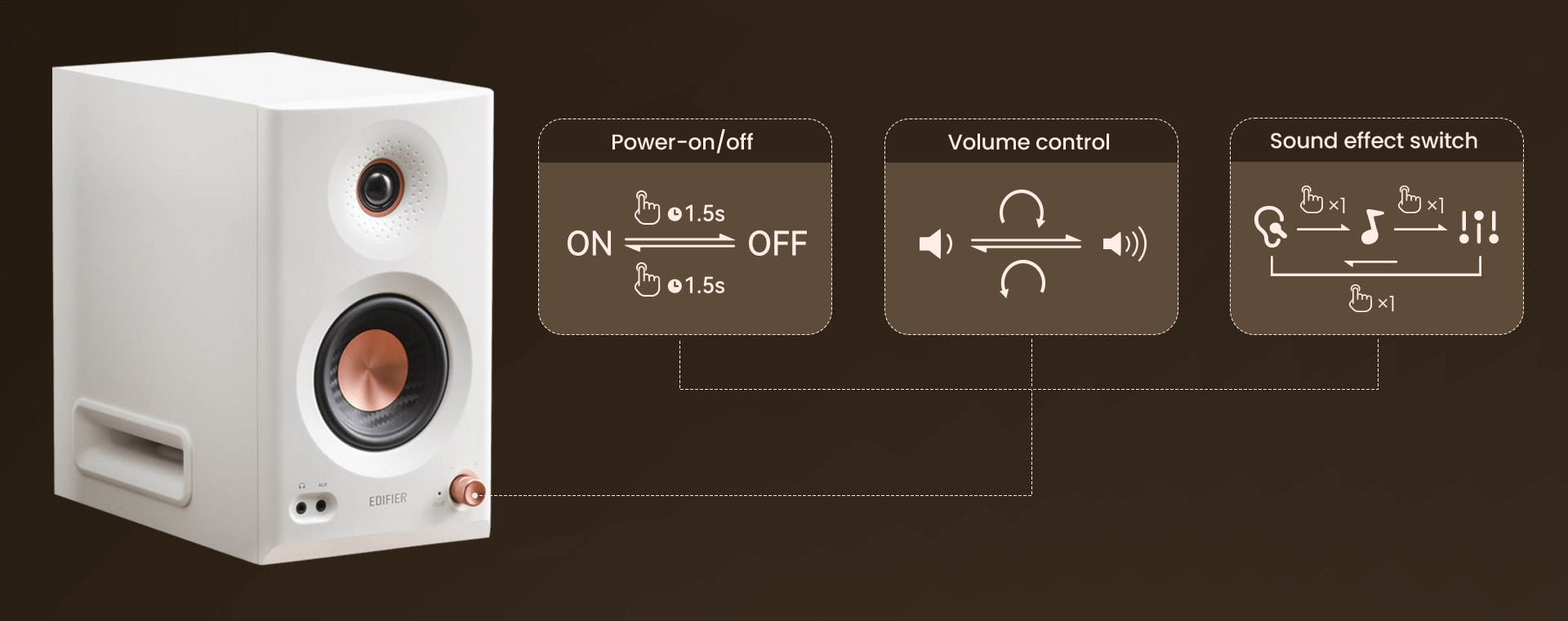

Easy Control

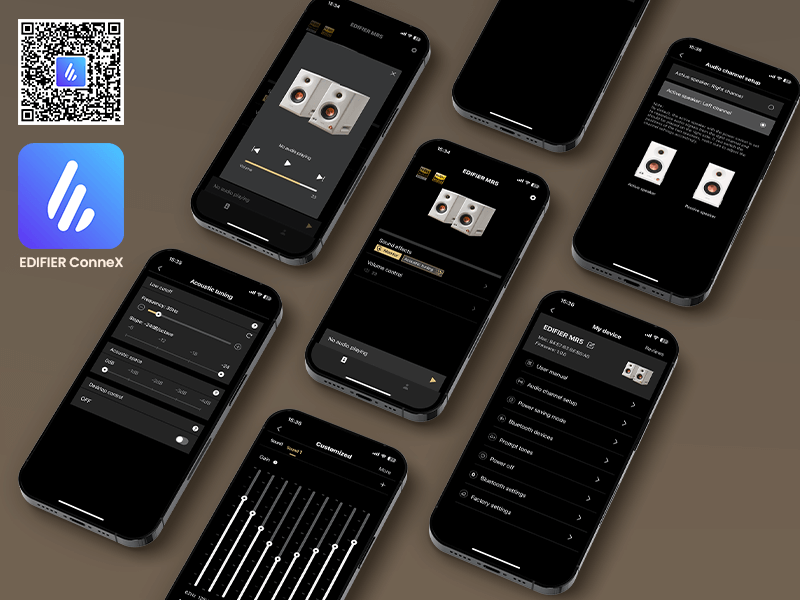

EDIFIER ConneX App

Download the EDIFIER ConneX mobile app to enjoy additional features.

* Playback control
* Sound effects switch and customization
* Room compensation settings
* User manual and other settings

Specification

Total Output Power (RMS):

10W + 10W (Treble)
15W + 15W (Mid)
30W + 30W (Bass)

Driver Units:

5" woofers
3.75" mid drivers
1" silk dome tweeters

Frequency Response:

46Hz - 40kHz

Signal-to-Noise Ratio:

≥ 85dB (A)

Audio Inputs:

Balanced XLR,
Balanced ¼-inch TRS,
Unbalanced RCA,
⅛-inch stereo (3.5mm AUX),
Bluetooth

lnput Sensitivity:

XLR: 1228 ± 50mV
TRS: 1228 ± 50mV
RCA: 700 ± 50mV
AUX: 600 ± 50mV
Bluetooth: 600 ± 50mFFS

Bluetooth Version:

V6.0

Codecs:

LDAC, SBC

Dimensions (W x H x D):

159mm × 264mm × 280mm (Active speaker),
159mm × 264mm × 257mm (Passive speaker)

Net Weight:

10.38kg

Crossover:

Bass/Mid 155 Hz,
Mid/Treble 2600 Hz

Sound Pressure Level (Max.):

101dB (@1 meter)

Headphone Output:

⅛-inch stereo
